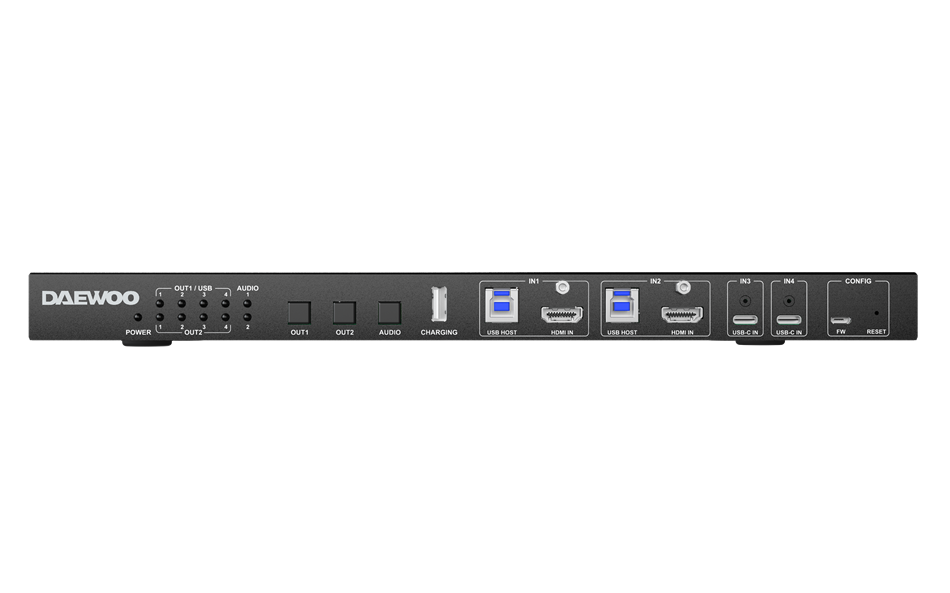

DUCS-0402PD

4x2 Conferencing Presentation Switcher with USB-C and Dante Audio

The DUCS-0402PD is a conferencing presentation switcher, specially designed for conference room scenarios, featuring 4x2 matrix switching and optional long-distance video, audio, and USB transmission via HDBastT 3.0 technology. Equipped with dual USB-C full-featured and dual HDMI+USB 3.0 inputs, full-featured USB-C inputs, supports 4K video, USB 3.2 data, 1Gbps ethernet over USB and 60W charging with automatic switching, which supports 4 x USB 3.0 device ports, enabling connection to various conferencing peripherals such as USB Cameras, Conferencing Video-bars, and USB Microphone & speakers, and can extend USB connectivity over long distances via HDBaseT Receiver.

Datasheet Enquiry

Features

Features

  • 4x2 conference presentation switch, integrating video, audio, USB, control and ethernet.
  • Dual USB-C and dual HDMI + USB 3.2 inputs, and all ports support cable lock connections.
  • Full-featured USB-C inputs, supports 4K video, USB 3.2 data, USB ethernet and 60W charging.
  • One USB-C input supports MST for dual-screen conferencing applications.
  • Supports automatic switching, USB and video independent switching, priority switching, and other switching methods.
  • Provides 4 USB 3.2 device ports for connecting conference equipment, such as cameras and speakerphone.
  • Provides one balanced audio out port for connecting audio equipment, supports audio de-embedding, UAC, and Dante.
  • Provides 100m HDBT 3.0 output for video and USB extension applications in medium and large conference rooms.
  • Provides RS232, GPIO, RELAY, and OCS Sensor ports to connect various control and controlled devices.
  • One USB charge-only port is connected to the conference table to provide a charging function for mobile phones.
  • Each input port provides an independent USB to Ethernet bridge, providing a 1G ethernet connection to the connected computer.
  • Provides two independent RJ-45 ports for ethernet switch or VLAN Setting.

Tech Specification

Model DUCS-0402PD

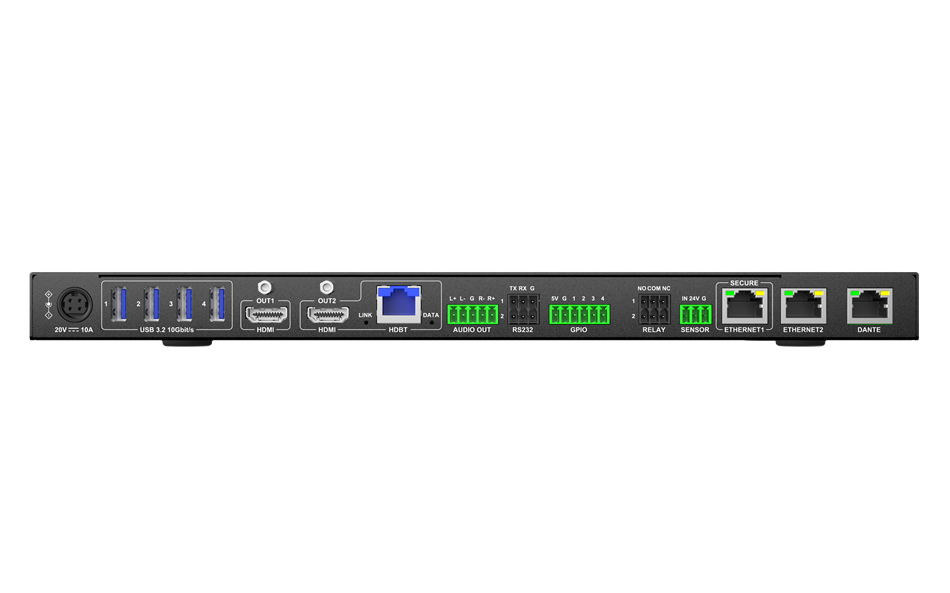

Input / Output Ports  2 x HDMI IN, 2 x USB-C IN, 2 x HDMI OUT, 1 x HDBT, 2 x USB HOST (USB Type-B), 1 x AUDIO OUT (3.5mm, 5-pin phoenix connector), 4 x USB DEVICE (USB Type-A), 2 x RS232, 1 x GPIO (3.5mm, 6-pin phoenix connector), 2 x RELAY, 1 x SENSOR, 2 x ETHERNET (RJ45), 1 x DANTE (RJ45), 1 x DC 20V
Input/Output Signal Type Supports HDMI 2.0 standard, up to 4K@60Hz 4:4:4 8bit or 4K@60Hz 4:2:2 12bit. Supports HDCP 2.2/1.4.
USB Host Input : 1 & 2 Supports USB 3.2 Gen 2x1 standard, up to 10Gbit/s
USB-C Input : 3 & 4 USB-C IN 3:
USB-C supports USB 3.2 Gen 2x1 standard, and supports:
  • Video: DP alt mode, SST only, up to 4K@60Hz.
  • USB data: Up to 10Gbit/s.
  • Charging: 60W.
USB-C IN 4:
USB-C supports USB 3.2 Gen 2x1 standard, and supports:
  • Video: DP alt mode, MST dual output, up to 4K@60Hz.
  • USB data: Up to 10Gbit/s.
  • Charging: 60W
USB Device Port Maximum supports USB 3.2 Gen 2x1 standard, up to 10Gbit/s.
5V/1.5A output per port.
Input/Output Resolution Supported

VESA: 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1200, 2048 x 1152, 2560 x 1440, 3440 x 1440

CTA: 1280x720P, 1920x1080P, 3840x2160P, 4096x2160P
HDR All HDR formats, including HDR 10, HLG, HDR 10+ and Dolby Vision
Audio Format USB-C IN/HDMI IN/ HDMI OUT: Up to 7.1ch, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio and DTS:X. Audio de-embedding: Stereo only. Dante: Stereo only.
Ethernet 1000M/100M adaptive network
Maximum Data Rate USB-C IN: 10Gbit/s
HDMI: 18Gbps
USB 3.2: 10Gbit/s
Control Method Front Panel Buttons, RS232, LAN (Telnet &Web UI)
Operating Temperature  0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection Human-body Model:
±8kV (Air-gap discharge)/ ±4kV (Contact discharge)
Power Supply DC 20V, 10A
Power Consumption (Max) Without USB and Charging: 13.1W
With USB + Charging: 155.6W
Dimension
(W x H x D)		 325mm x 25mm x 180.2mm /
12.80” x 0.98” x 7.09”
Weight 1.45kg/3.20lbs
